DC Battery Voltmeter 8V-100V Capacity Indicator Meter Lithium LiFePO4 lead-acid cell 12V 24V 48V

Description
Report Item
Product selling points:
1. High stability
2. Strong reliability
3. Long service life
4. Accuracy error calibration with adjustable potentiometer
5. Custom settings for high and low voltage range: DC8-100V

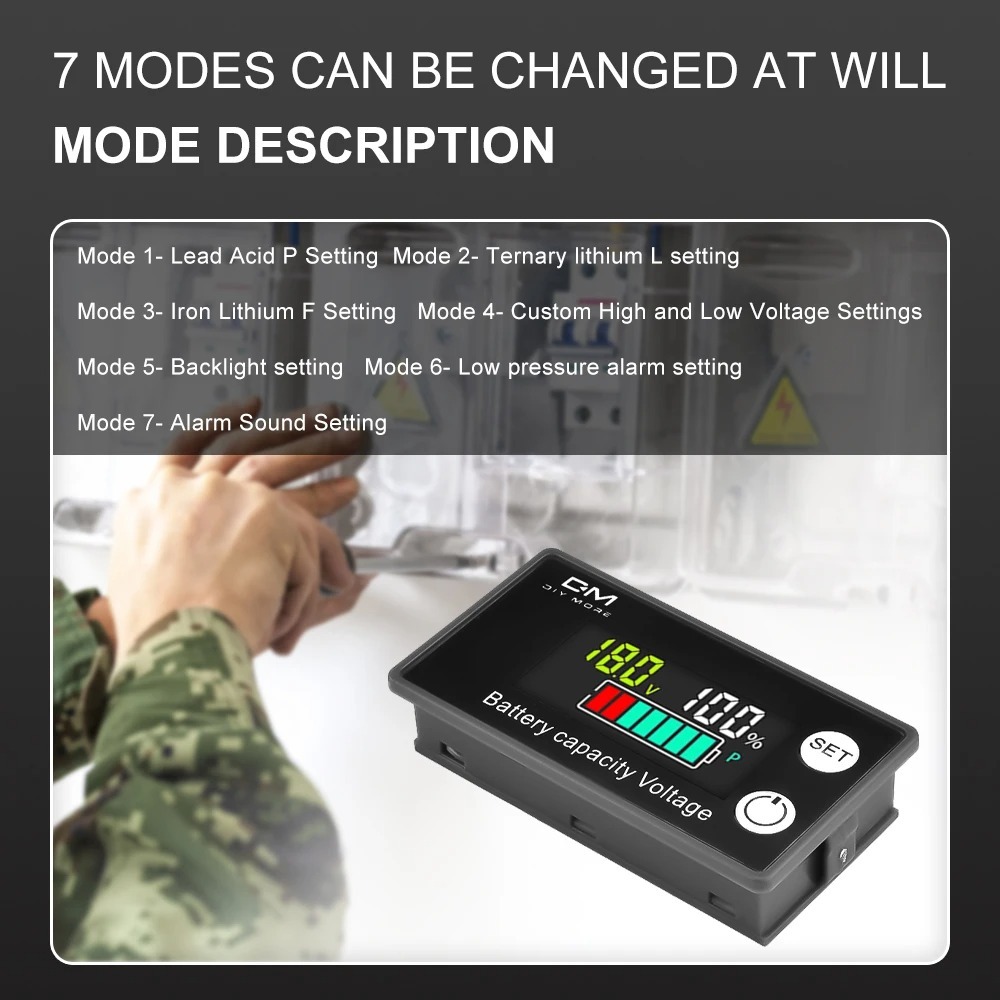

6. Triple lithium battery L measurement from L03 string to L20 string (power off memory)
7. Lead acid battery P measurement: DC12V, 36V, 48V, 60V72V, 84V (power off memory)
8. Iron lithium battery F measurement from F03 to F23 series (power off memory)

Product parameters:
Voltage detection range: DC8-80V
Working current: ≤ 15MA
Display method: LCD screen
Display color: blue/white/colored (optional)

Performance indicators:
Detection accuracy: ± 1%
Opening size: 58.5 * 28.5MM
Refresh speed: 500ms/time

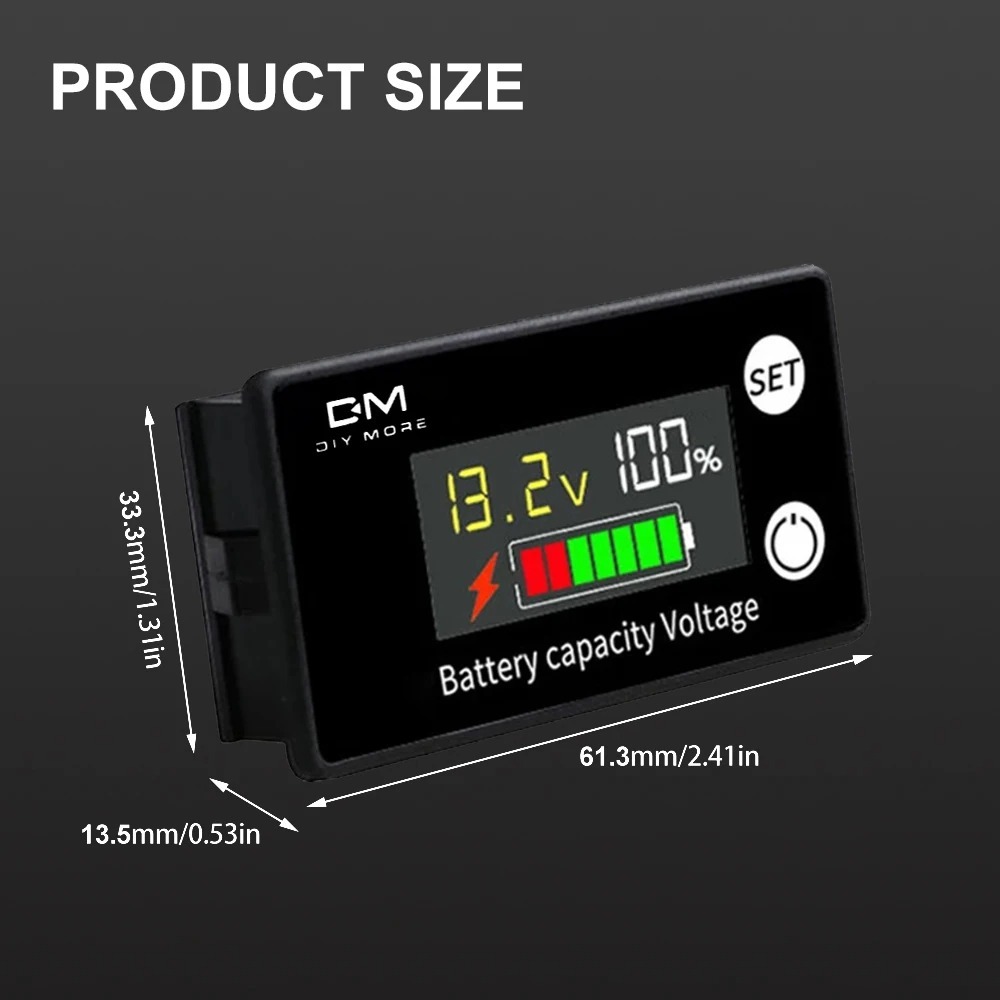

Boundary dimension: 61.3 * 33.3 * 13.5MM

detailed list:
Meter head * 1+instruction manual * 1+line * 1
